Aqua-Flo - TMCP Wet End Assembly 2 HP, 1.5in, 91041020

Item No. 317001 | Manufacturer SKU: 91041020000
Item No. 317001 | Manufacturer SKU: 91041020000
Aqua-Flo TMCP Wet End Assembly 2 HP 1.5in 91041020
Aqua-Flo TMCP Wet End Assembly 2 HP 1.5in 91041020
TMCP Wet End Assembly 2 HP, 1.5in, 91041020
$99.99
Gecko 2" Complete Wet End for 2 HP Tub-Master CP Series 48 Frame Pumps More Details
How to get it
Pick your options above to see how you can get it.
FREE standard delivery on orders of $100+ for members.
Want it today? Check another store
How does same-day delivery work?
This item is only available for AccuBlue Home Members
AccuBlue Home is our premiere water testing system. Learn More
Already a member? to access this item.

Gecko 2" Complete Wet End for 2 HP Tub-Master CP Series 48 Frame Pumps

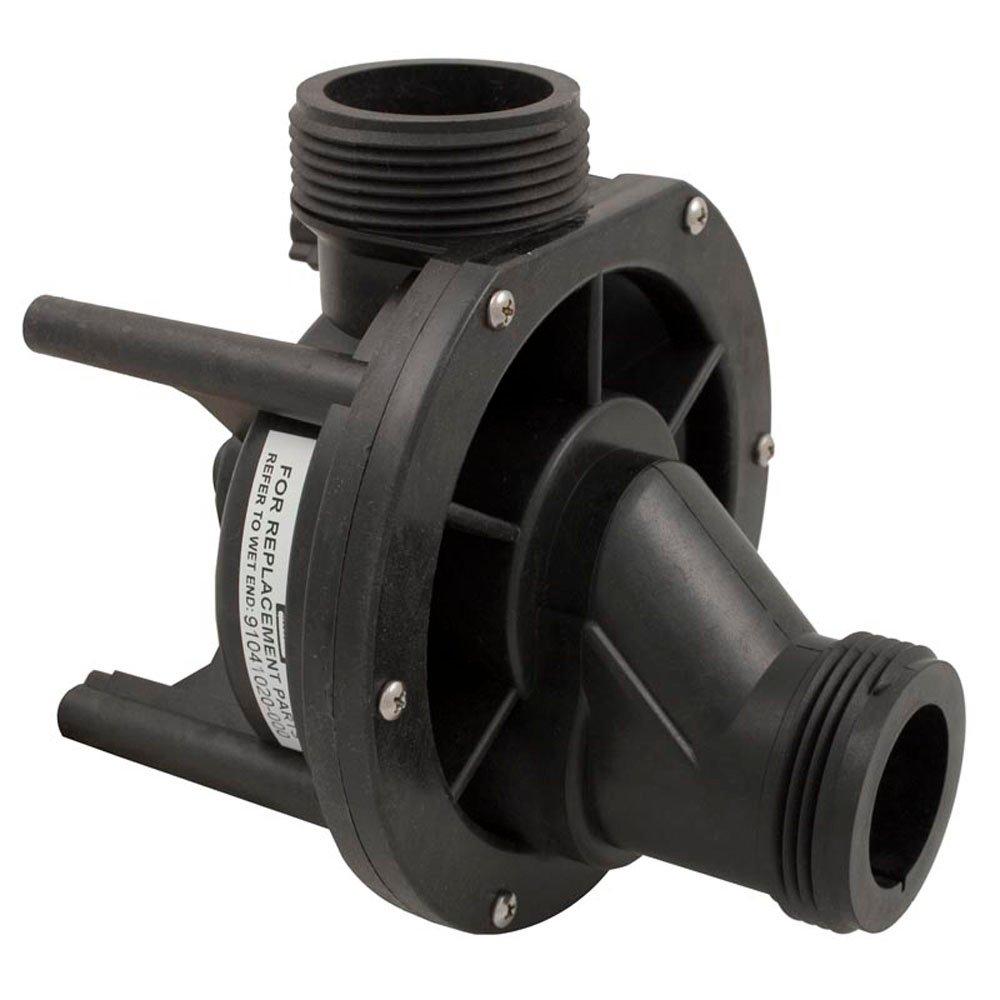

Aqua-Flo (Gecko Alliance) Tub Master TMCP Pump, Wet End Assembly, 91041020 (34-402-1068), is a 2.0 horsepower, 1.5"", 48-frame center discharge wet end, complete. TMCP wet end includes pre-assembled Volute, Impeller and shaft seal for a quick and easy installation onto your 48-frame, 2 hp motor. Threaded in/out ports measure 2-7/16"" OD, and connect to 1.5"" unions, sold separately.

Replacing a Spa Pump Wet End: Shut all power off. Then remove the bolts that connect the motor to the wet end. Now remove the small cover plate at the back of the motor, and place a large flat head screwdriver or wrench on the end of the motor shaft. Reach into the front of the wet end with your other hand to hold the impeller stationary, while you turn the screwdriver counter-clockwise, to un-thread the shaft from the impeller. Now, just pull the wet end off the front of the motor and replace with new, in reverse order.

Two Year and Three Month Warranty, see Owner's Manual for a full description of warranty claims and coverage details.
